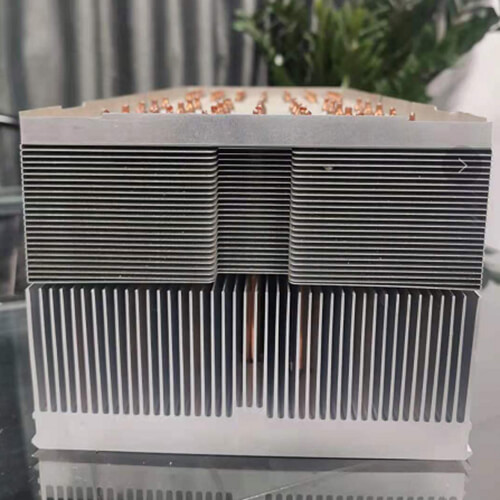

High power heat pipe radiator

High power heat pipe radiator

1. The characteristics of heat pipe radiator module is divided into the base and radiator module heat pipe riveting heat sink two parts, the base for aluminum heat sink or copper heat sink, floor solid parts with heat pipe and heat paste at the same time, make its conduction heat fast, leaf tooth surface with heat pipe placed in the number of tube hole is drilled or tube slot, the second part for the required amount of heat pipe with leaf tooth blade after riveting as a set of module with heat pipe of riveting radiator accessories, in combined with radiator main body, insert or internal heat pipe fin tube hole groove, fill in the solder paste, then add high temperature can make its suspected as a whole.

2. Excellent thermal conductivity and heat dissipation effect of the heat pipe radiator of the superior module. This is the best way of high power heat pipe radiator. Often used in industrial equipment, medical machinery, aviation equipment and other fields!

3. The disadvantages of the module radiator products have high manufacturing cost, a large number of copper pipes and heat pipes, a certain rate of defects, long processing time, the need to open stamping die costs, high cost, not suitable for small batch production.

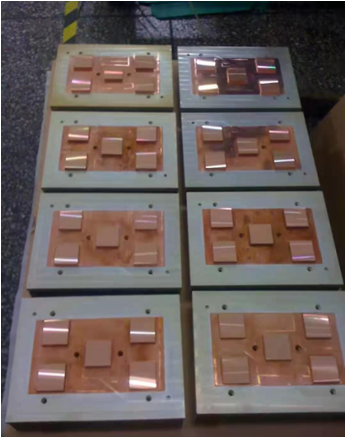

Hybrid copper-aluminum fin radiator
